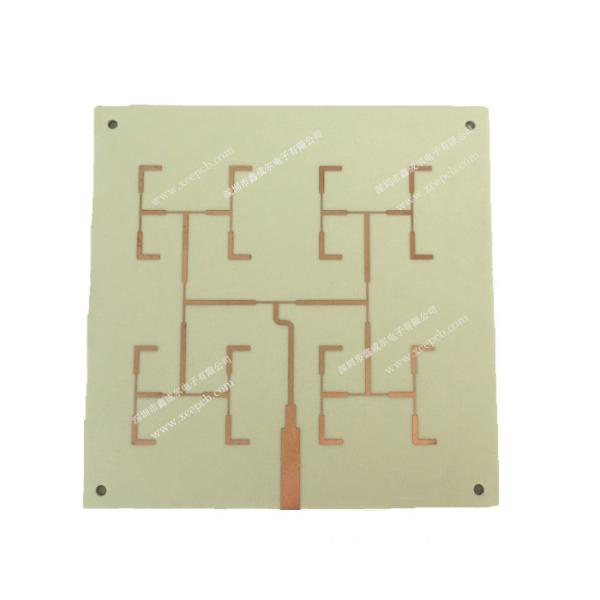

Rogers4350B Board Without Soldermask For Microwave/RF Applications 0.79MM Thickness
Specifiction:
layer:6
board thickness:0.79mm
Copper thickness:1oz
min Hole size:0.2mm
min line width and distance:5/5mil
Surface treatment: imersion Tin
Application: Microwave/RF
Product Description
L1-L2 Blind holes;
L2-L3 Bury holes;
L1-L4 Through holes;
Copper based with Rogers 4350 T1.3mm.
Copper thickness 0.70mm;
Milling thickness 1.2mm.
Description :
RO4350B materials are proprietary woven glass reinforced hydrocarbon/ceramics with electrical performance close to PTFE/woven glass and the manufacturability of epoxy/ glass.
Providing tight control on dielectric constant and low loss while utilizing the same processing method as standard epoxy/glass, RO4350B is available at a fraction of the cost of conventional microwave laminates. No special through-hole treatments or handling procedures are required as with PTFE based microwave materials.
RO4350B materials are UL 94V-0 rated for active devices and high power RF designs.
Specification
| PCB Type: |
Rogers PCB |
| Layer : |
6 layer |
| Min .Line Width/Space: |
5mil/5mil |
| Min. Via Diameter: |
0.3mm |
| Finish Thickness: |
0.2mm |
| Surface Finish: |
Immersion Tin |
| Size: |
101*150MM |
| Material: |
Rogers |
| Color: |
/ |
| Application |
Microwave/RF |
Rogers material in stock:
| Brand |
Model |
Thickness(mm) |
DK(ER) |
| F4B |
F4B |
0.38 |
2.2 |
| F4B |
0.55 |
2.23 |
| F4B |
0.225,0.3,0.5,08,1,1.2,1.5,2,2.5,3.0 |
2.65 |
| F4Bk |
0.8,1.5 |
2.65 |
| F4B |
0.8 |
3.5 |
| FE=F4BM |
1 |
2.2 |
| Rogers |
RO4003 |
0.254 0.508,0.813,1.524 |
3.38 |
| RO4350 |
0.254 0.508,0.762,1.524 |
3.5 |
| RO5880 |
0.254.0.508.0.762 |
2.2 |
| RO3003 |
0.127,0.508,0.762,1.524 |
3 |
| RO3010 |
0.635 |
10.2 |
| RO3206 |
0.635MM |
10.2 |
| R03035 |
0.508MM |
3.5 |
| RO6010 |
0.635MM, 1,27MM |
10.2
|
Our PCB board manufacture
* PCB board file with parts list provided by customers
* PCB board made, circuit board parts purchased by us
* Electronic testing circuit board
* Fast delivery, anti-static package
* RoHS Directive-compliant, lead-free
Testing Procedures For PCB Board
---We perform multiple quality assuring procedures before shipping out any PCB board. These include:
* Visual Inspection
* Flying probe
* Bed of nails
· * Impedance control
· * Solder-ability detection
* Digital metallograghic microscope
· *AOI (Automated Optical Inspection)
Available substrates:
RO4350B RO4003C TLX-8 (TACONIC) F4B Woven Glass-Reinforced PTFE
4mil(0.1mm) 8mil (0.203mm) 20mil(0.5mm)
10mil(0.254mm) 12mil(0.3mm) 30mil(0.762mm)
13.3mil(0.338mm) 20mil(0.508mm) 40mil(1.0mm)
20mil (0.508mm) 32mil(0.813mm)
30mil(0.762mm) 60mil(1.524mm)
60mil(1.524mm)
Applications:
Amplifier Combiner Coupler Mixer Multiplexer Power divider WiFi
WiMAX, LTE bands 3G and 4G antenna
Competitive Advantage:
1) With UL,ROHS,ISO,IPC
2).Lead time:3-10 working days
3)Competitive price best quality
4).Rich 20 years experience in High Tg Multilayer PCB .
What Information customer need to provide for quotation ?
1. PCB Gerber files ,protel,powerpcb,Autocad,etc.
2. BOM list for PCB assembly.
3. Send us your sample PCB or PCBA.
4. OEM is acceptable.
